The OrthoNovis External Fixation System consists of clamps, rods, and pins that provide the surgeon a broad range of frame construct options for stabilizing or immobilizing fractures.

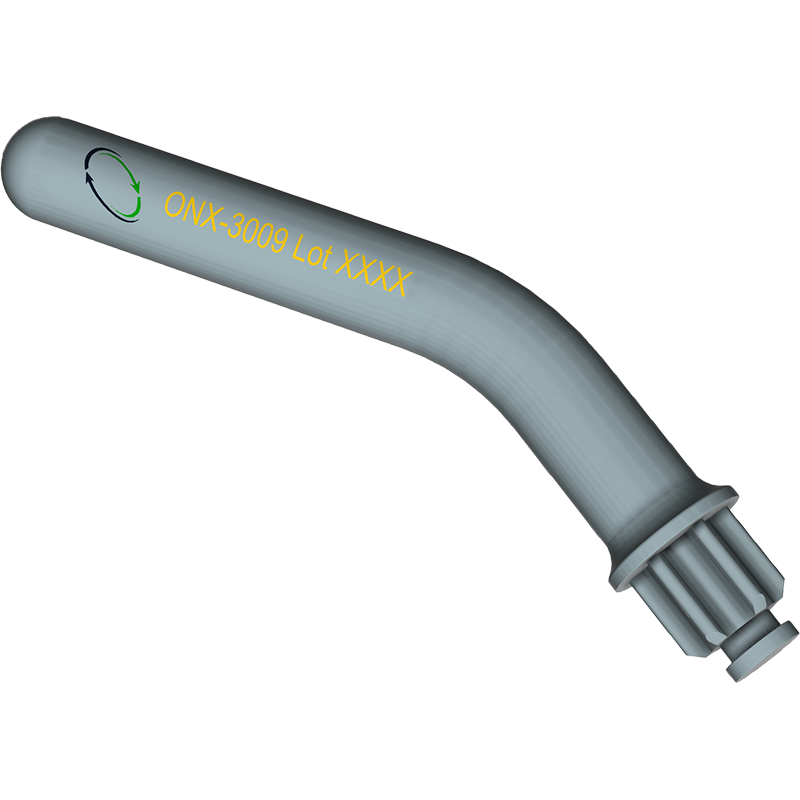

The ONX Large External Fixation System includes a variety of components including clamps, rods, posts and pins that, when used in conjunction, provide the surgeon a broad range of frame construct options that can be used to stabilize/immobilize fractures or surgically created instability of the
femur, tibia, knee joint, ankle, and pelvis.
The clamps, fabricated from titanium and stainless steel, are offered in the following configurations: open rod clamp, closed rod clamp, adjustable rod pin clamp, rod pin clamp, and multiple pin clamp.

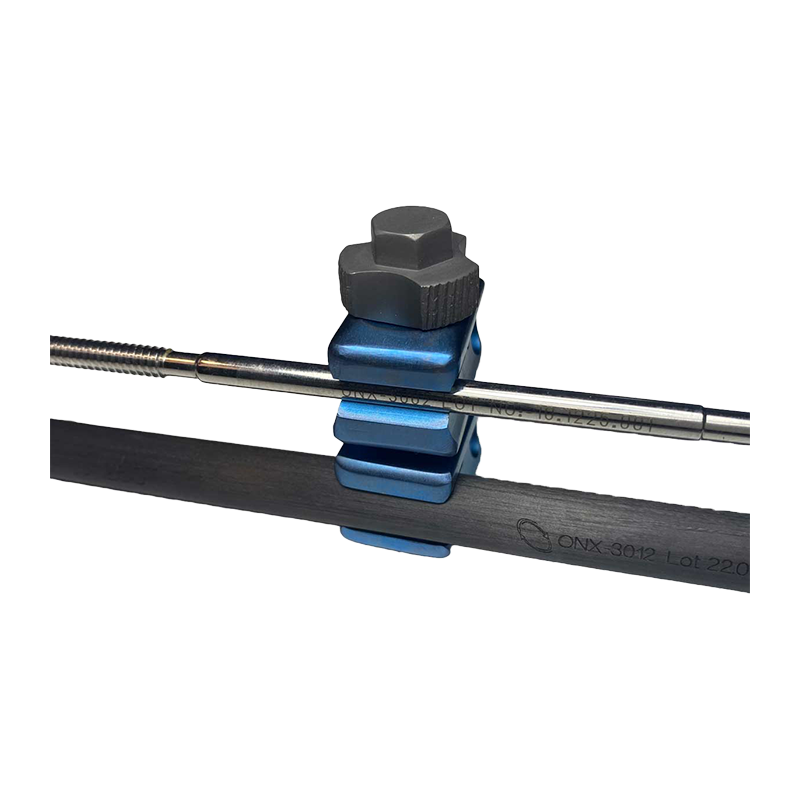

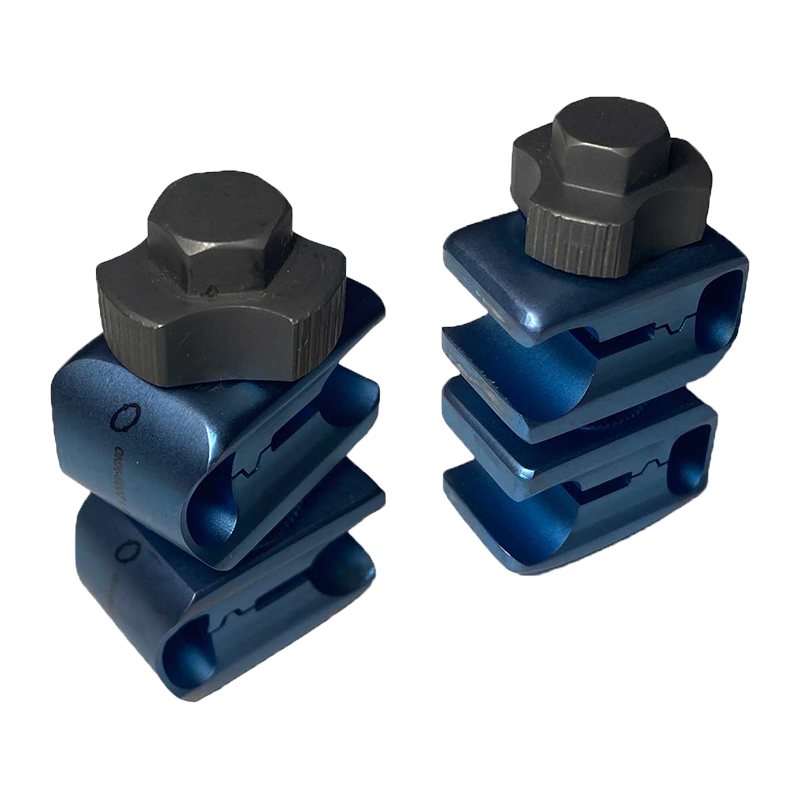

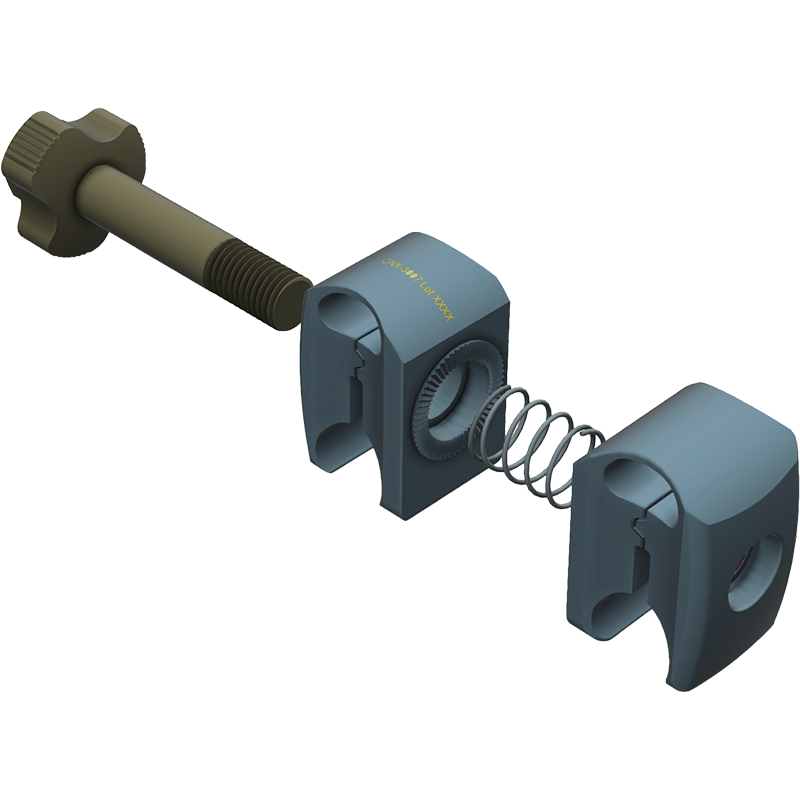

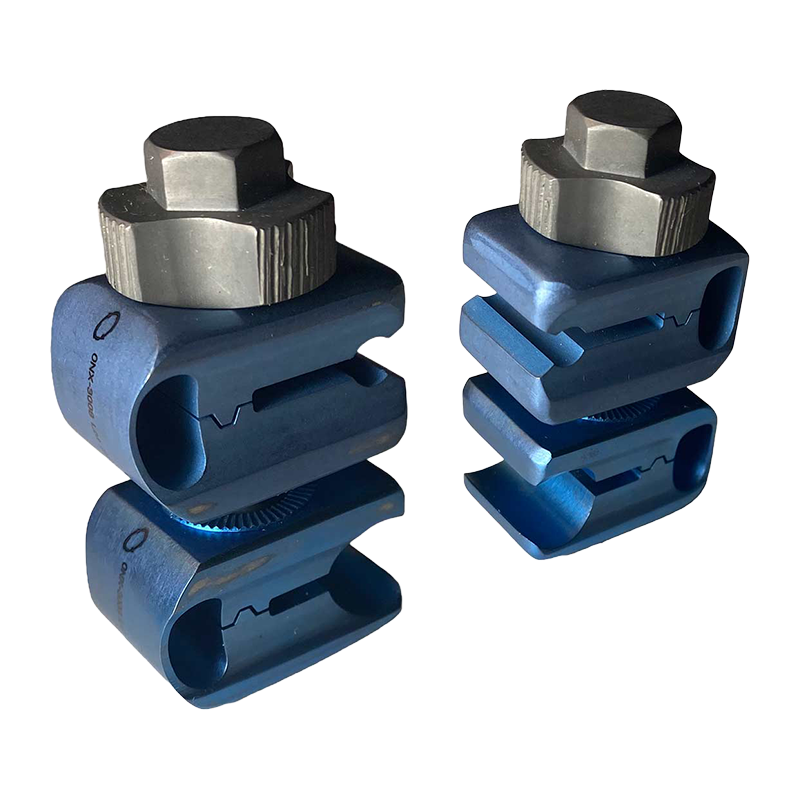

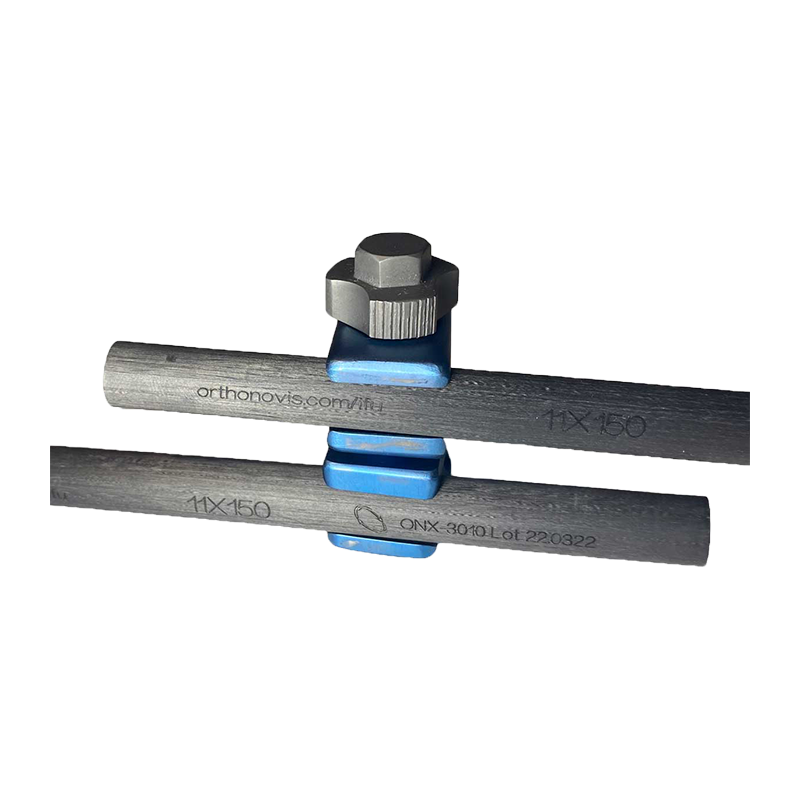

The open rod clamp, closed rod clamp, adjustable rod pin clamp, and rod pin clamp are used to connect rods to pins or to connect a rod to another rod.
The large multiple pin clamp is used to connect rods to multiple bone pins. The rods are 11mm in diameter and are provided in a range of lengths. All rods are fabricated from radiolucent carbon fiber to provide strength and rigidity while minimizing interference with x-rays.

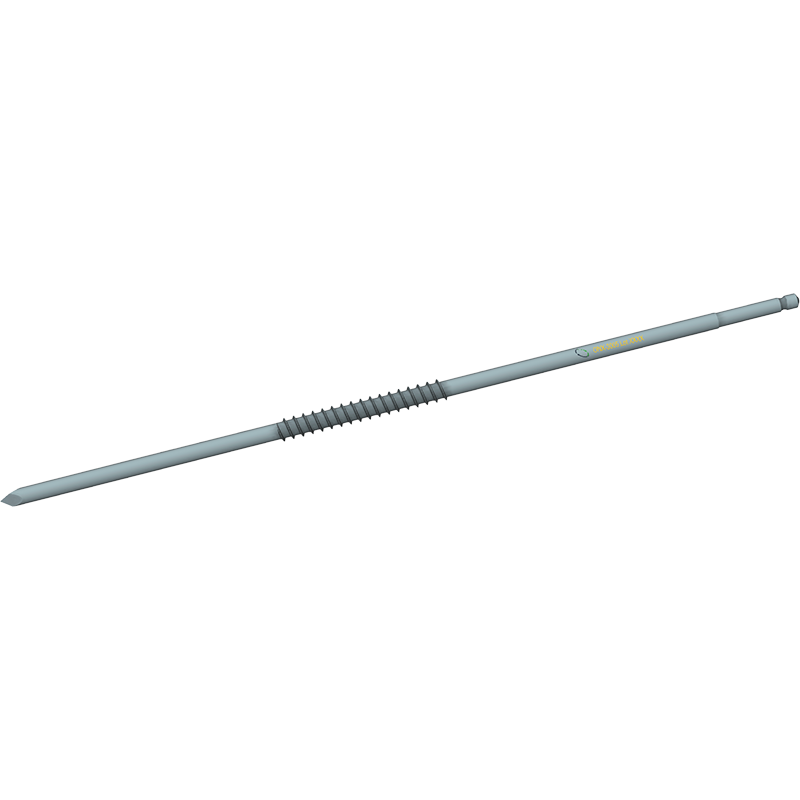

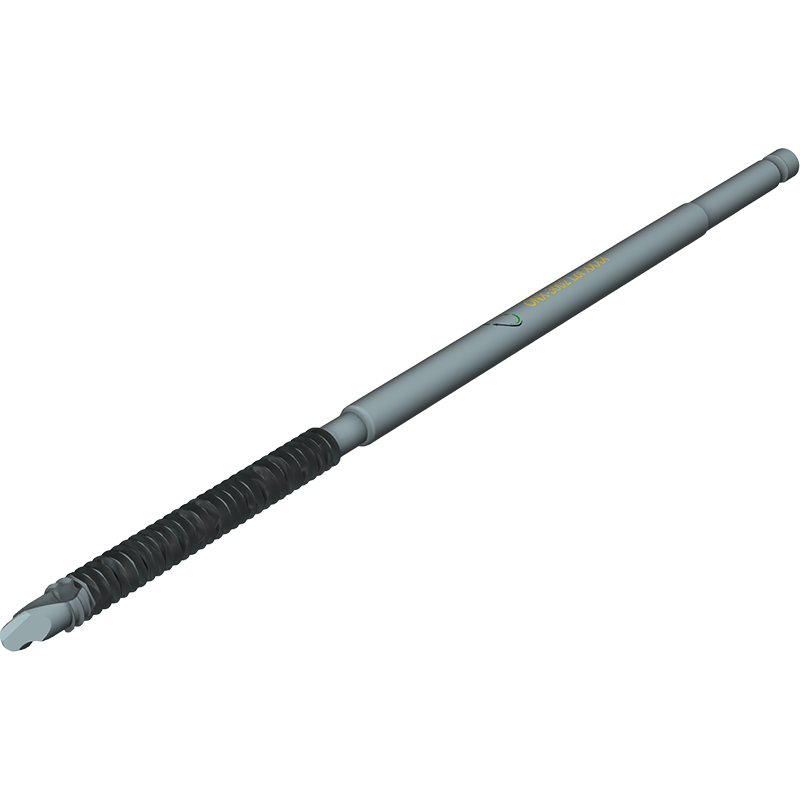

The bone pins incorporate fixation threads and are offered in three diameters and in three lengths with self-drilling tips. All bone pins are available in either titanium alloy or stainless steel.
